Siri standard welded silinder hidraulik
Kami adalah pengeluar dan pengeksport silinder hidraulik yang berpusat di China. Sistem pembuatan dan kualiti kami direka untuk menawarkan setiap pelanggan produk terbaik yang sesuai dengan keperluan mereka. Setiap silinder hidraulik yang dikimpal siri Toleng telah menjalani ujian tekanan tinggi yang ketat dan dilengkapi dengan jaminan 12 bulan.
Hantar Pertanyaan
Penerangan Produk

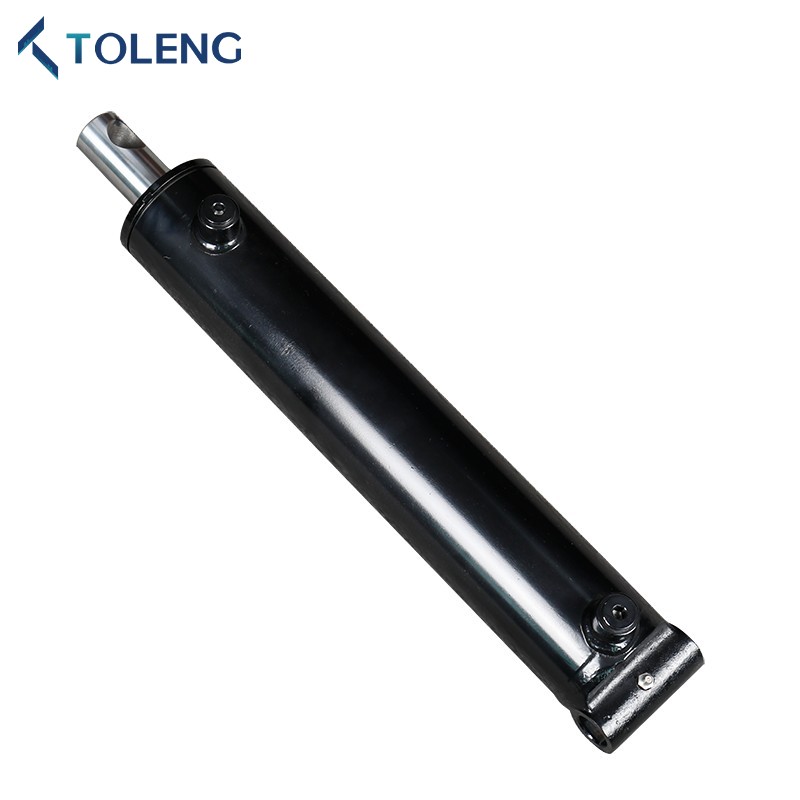

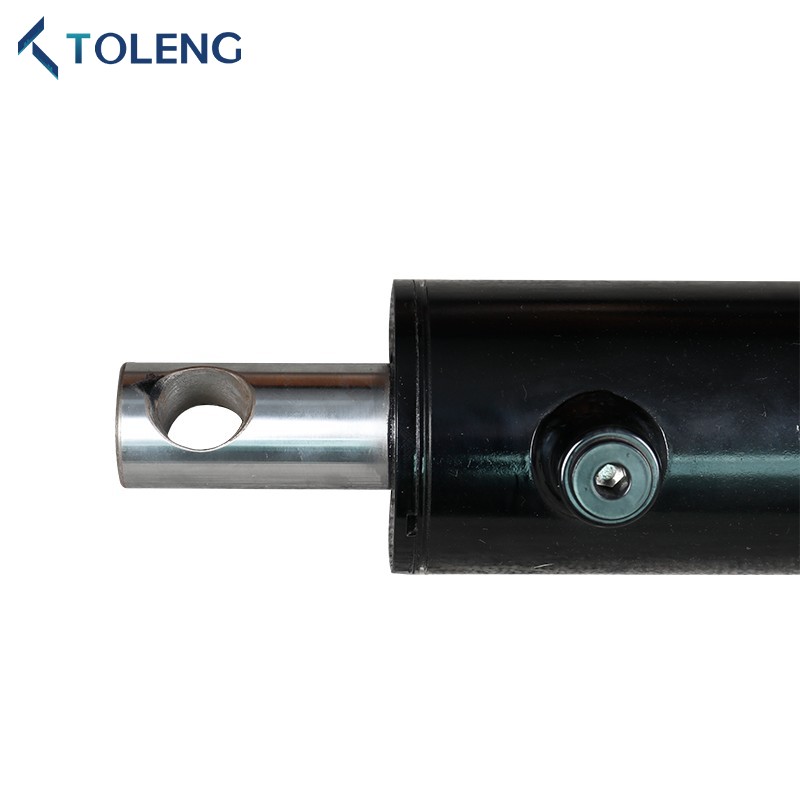

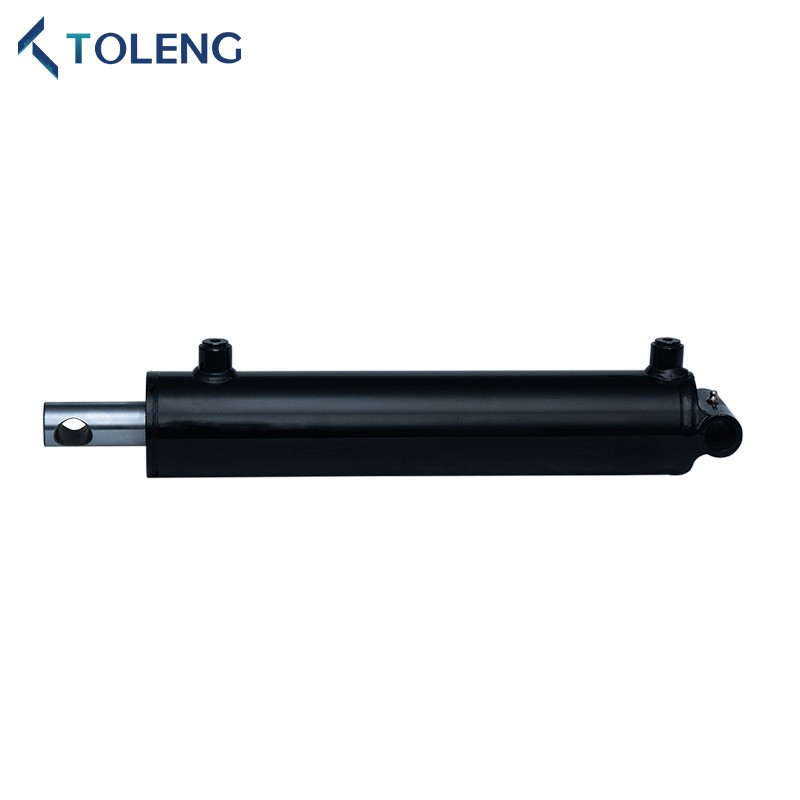

Siri hidraulik siri standard yang boleh dipercayai Toleng mempunyai asas tiub salib palsu dan mata pin melalui lubang. Ia mempunyai struktur dikimpal tahan lama, batang keluli tegangan tinggi dengan penyaduran krom keras dan pengerasan induksi untuk meningkatkan kekuatan dan ketahanan. Tiub keluli yang diasah memastikan pergerakan yang tepat, manakala omboh dan kelenjar diperbuat daripada besi mulur untuk menambah ketangguhan.
Silinder hidraulik wth standard sesuai untuk pelbagai aplikasi perindustrian dan biasa di pasaran perindustrian Amerika Utara. Mereka mempunyai sistem hidraulik yang dimeteraikan untuk mencegah pencemaran dan mengekalkan prestasi optimum dalam keadaan yang mencabar.
Parameter teknikal silinder hidraulik yang dikimpal standard
1. Tekanan Kerja: 3000 psi
2.Rod: keluli, induksi keras dan bersalut krom
3.Piston: besi mulur, untuk peningkatan ketahanan
4.Tube: keluli, diasah dan ketepatan selesai
5.gland: berulir
6.Pin: keluli, bersalut zink
7.Seals: Hallite, Aston, NOK, DZ, dan lain -lain berkualiti tinggi. Boleh disesuaikan.
8.Paint: Hitam, Hijau, Merah, Kuning, dan lain -lain. Warna tersuai boleh didapati.
Parameter teknikal silinder hidraulik yang dikimpal standard
| Dikimpal melalui silinder lubang | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| TWWTH30-1504 | 1 " | 1.5 "x4" | 11 " | 15 " | SAE#6 | 5/8 " | 7 |
| TWWTH30-1506 | 1.5 "x6" | 13 " | 19 " | 8 | |||
| TWWTH30-1508 | 1.5 "x8" | 15 " | 23 " | 9 | |||
| TWWTH30-1510 | 1.5 "x10" | 17 " | 27 " | 11 | |||
| TWWTH30-1512 | 1.5 "x12" | 19 " | 31 " | 12 | |||
| TWWTH30-1514 | 1.5 "x14" | 21 " | 35 " | 13 | |||
| TWWTH30-1516 | 1.5 "x16" | 23 " | 39 " | 14 | |||
| TWWTH30-2004 | 1-1/4 " | 2 "x4" | 12 " | 16 " | SAE#8 | 3/4 " | 10 |
| TWWTH30-2006 | 2 "x6" | 14 " | 20 " | 12 | |||
| TWWTH30-2008 | 2 "x8" | 16 " | 24 " | 14 | |||
| TWWTH30-2010 | 2 "x10" | 18 " | 28 " | 16 | |||
| TWWTH30-2012 | 2 "x12" | 20 " | 32 " | 17 | |||
| TWWTH30-2014 | 2 "x14" | 22 " | 36 " | 19 | |||
| TWWTH30-2016 | 2 "x16" | 24 " | 40 " | 21 | |||
| TWWTH30-2018 | 2 "x18" | 26 " | 44 " | 22 | |||
| TWWTH30-2020 | 2 "x20" | 28 " | 48 " | 24 | |||
| TWWTH30-2024 | 2 "x24" | 32 " | 56 " | 27 | |||
| TWWTH30-2028 | 2 "x28" | 36 " | 64 " | 31 | |||
| TWWTH30-2030 | 2 "x30" | 38 " | 68 " | 33 | |||
| TWWTH30-2032 | 2 "x32" | 40 " | 72 " | 34 | |||
| TWWTH30-2036 | 2 "x36" | 44 " | 80 " | 38 | |||
| TWWTH30-2040 | 2 "x40" | 48 " | 88 " | 41 | |||
| TWWTH30-2042 | 2 "x42" | 50 " | 92 " | 43 | |||
| TWWTH30-2048 | 2 "x48" | 56 " | 104 " | 48 | |||
| TWWTH30-2060 | 2 "x60" | 68 " | 128 " | 58 | |||
| TWWTH30-2072 | 2 "x72" | 80 " | 152 " | 68 | |||
| Dikimpal melalui silinder lubang | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| TWWTH30-2504 | 1-3/8 " | 2.5 "x4" | 12 " | 16 " | SAE#8 | 3/4 " | 14 |
| TWWTH30-2506 | 2.5 "x6" | 14 " | 20 " | 16 | |||
| TWWTH30-2508 | 2.5 "x8" | 16 " | 24 " | 18 | |||
| TWWTH30-2510 | 2.5 "x10" | 18 " | 28 " | 20 | |||
| TWWTH30-2512 | 2.5 "x12" | 20 "" | 32 ” | 22 | |||
| TWWTH30-2514 | 2.5 "x14" | 22 " | 36 " | 24 | |||
| TWWTH30-2516 | 2.5 "x16" | 24 " | 40 " | 26 | |||
| TWWTH30-2518 | 2.5 "x18" | 26 "" | 44 " | 28 | |||
| TWWTH30-2520 | 2.5 "x20" | 28 " | 48 " | 30 | |||
| TWWTH30-2524 | 2.5 "x24" | 32 " | 56 " | 35 | |||
| TWWTH30-2528 | 2.5 "x28" | 36 " | 64 " | 39 | |||
| TWWTH30-2530 | 2.5 "x30" | 38 " | 68 " | 41 | |||
| TWWTH30-2532 | 2.5 "x32" | 40 " | 72 " | 43 | |||
| TWWTH30-2536 | 2.5 "x36" | 44 " | 80 " | 47 | |||
| TWWTH30-2540 | 2.5 "x40" | 48 " | 88 " | 51 | |||
| TWWTH30-2542 | 2.5 "x42" | 50 " | 92 " | 53 | |||
| TWWTH30-2548 | 2.5 "x48" | 56 " | 104 " | 59 | |||
| TWWTH30-2560 | 2.5 "x60" | 68 " | 128 " | 72 | |||
| TWWTH30-3004 | 1-1/2 " | 3 "x4" | 12 " | 16 " | SAE#8 | 1 " | 19 |
| TWWTH30-3006 | 3 "x6" | 14 " | 20 " | 21 | |||
| TWWTH30-3008 | 3 "x8" | 16 " | 24 " | 24 | |||
| TWWTH30-3010 | 3 "x10" | 18 " | 28 " | 26 | |||
| TWWTH30-3012 | 3 "x12" | 20 " | 32 " | 28 | |||
| TWWTH30-3014 | 3 "x14" | 22 " | 36 " | 31 | |||
| TWWTH30-3016 | 3 "x16" | 24 " | 40 " | 33 | |||
| TWWTH30-3018 | 3 "x18" | 26 " | 44 " | 36 | |||
| TWWTH30-3020 | 3 "x20" | 28 " | 48 " | 38 | |||
| TWWTH30-3024 | 3 "x24" | 32 " | 56 " | 43 | |||
| TWWTH30-3028 | 3 "x28" | 36 " | 64 " | 48 | |||
| TWWTH30-3030 | 3 "x30" | 38 " | 68 " | 51 | |||
| TWWTH30-3032 | 3 "x32" | 40 " | 72 " | 53 | |||
| TWWTH30-3036 | 3 "x36" | 44 " | 80 " | 58 | |||
| TWWTH30-3040 | 3 "x40" | 48 " | 88 " | 63 | |||
| TWWTH30-3042 | 3 "x42" | 50 " | 92 ” | 65 | |||
| TWWTH30-3048 | 3 "x48" | 56 " | 104 " | 73 | |||
| TWWTH30-3060 | 3 "x60" | 68 " | 128 " | 87 | |||
| Dikimpal melalui lubang cylin der | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| TWWTH30-3504 | 1-3/4 " | 3.5 "x4" | 12 " | 16 " | SAE#8 | 1 " | 24 |
| TWWTH30-3506 | 3.5 "x6" | 14 " | 20 " | 27 | |||
| TWWTH30-3508 | 3.5 "x8" | 16 " | 24 " | 30 | |||
| TWWTH30-3510 | 3.5 "x10" | 18 " | 28 " | 33 | |||
| TWWTH30-3512 | 3.5 "x12" | 20 " | 32 " | 36 | |||
| TWWTH30-3514 | 3.5 "x14" | 22 " | 36 " | 39 | |||
| TWWTH30-3516 | 3.5 "x16" | 24 " | 40 " | 42 | |||
| TWWTH30-3518 | 3.5 "x18" | 26 " | 44 " | 45 | |||
| TWWTH30-3520 | 3.5 "x20" | 28 " | 48 " | 48 | |||
| TWWTH30-3524 | 3.5 "x24" | 32 " | 56 " | 54 | |||
| TWWTH30-3528 | 3.5 "x28" | 36 " | 64 " | 60 | |||
| TWWTH30-3530 | 3.5 "x30" | 38 " | 68 " | 63 | |||
| TWWTH30-3532 | 3.5 "x32" | 40 " | 72 " | 66 | |||
| TWWTH30-3536 | 3.5 "x36" | 44 " | 80 " | 72 | |||
| TWWTH30-3540 | 3.5 "x40" | 48 " | 88 " | 79 | |||
| TWWTH30-3542 | 3.5 "x42" | 50 " | 92 " | 82 | |||
| TWWTH30-3548 | 3.5 "x48" | 56 " | 104 " | 91 | |||
| TWWTH30-3560 | 3.5 "x60" | 68 " | 128 " | 109 | |||
| TWWTH30-4004 | 2 " | 4.0 "x4" | 13 " | 17 " | SAE#8 | 1-1/4 " | 33 |
| TWWTH30-4006 | 4.0 "x6" | 15 " | 21 " | 36 | |||
| TWWTH30-4008 | 4.0 "x8" | 17 " | 25 " | 40 | |||
| TWWTH30-4010 | 4.0 "x10" | 19 " | 29 " | 44 | |||
| TWWTH30-4012 | 4.0 "x12" | 21 " | 33 " | 47 | |||
| TWWTH30-4014 | 4.0 "x14" | 23 " | 37 " | 51 | |||
| TWWTH30-4016 | 40 "x16" | 25 " | 41 " | 55 | |||
| TWWTH30-4018 | 4.0 "x18" | 27 " | 45 " | 58 | |||
| TWWTH30-4020 | 4.0 "x20" | 29 " | 49 " | 62 | |||
| TWWTH30-4024 | 4.0 "x24" | 33 " | 57 " | 70 | |||
| TWWTH30-4028 | 4.0 "x28" | 37 " | 65 " | 77 | |||
| TWWTH30-4030 | 4.0 "x30" | 39 " | 69 " | 81 | |||
| TWWTH30-4032 | 4.0 "x32" | 41 " | 73 " | 84 | |||
| TWWTH30-4036 | 4.0 "x36" | 45 " | 81 ” | 92 | |||
| TWWTH30-4040 | 4.0 "x40" | 49 " | 89 " | 99 | |||
| TWWTH30-4042 | 4.0 "x42" | 51 " | 93 " | 103 | |||
| TWWTH30-4048 | 4.0 "x48" | 57 " | 105 " | 114 | |||
| TWWTH30-4060 | 4.0 "x60" | 69 " | 129 " | 136 | |||
Perincian silinder hidraulik yang dikimpal standard
Teg Panas: Siri standard weld dikimpal silinder hidraulik, China, pengilang, pembekal, disesuaikan, kualiti, kilang, borong, harga rendah
