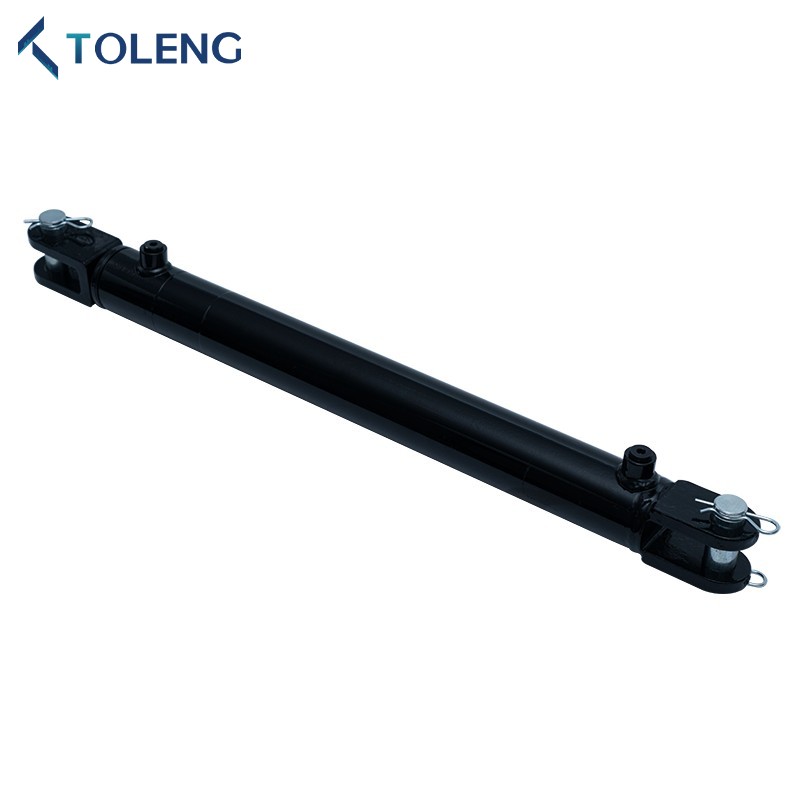

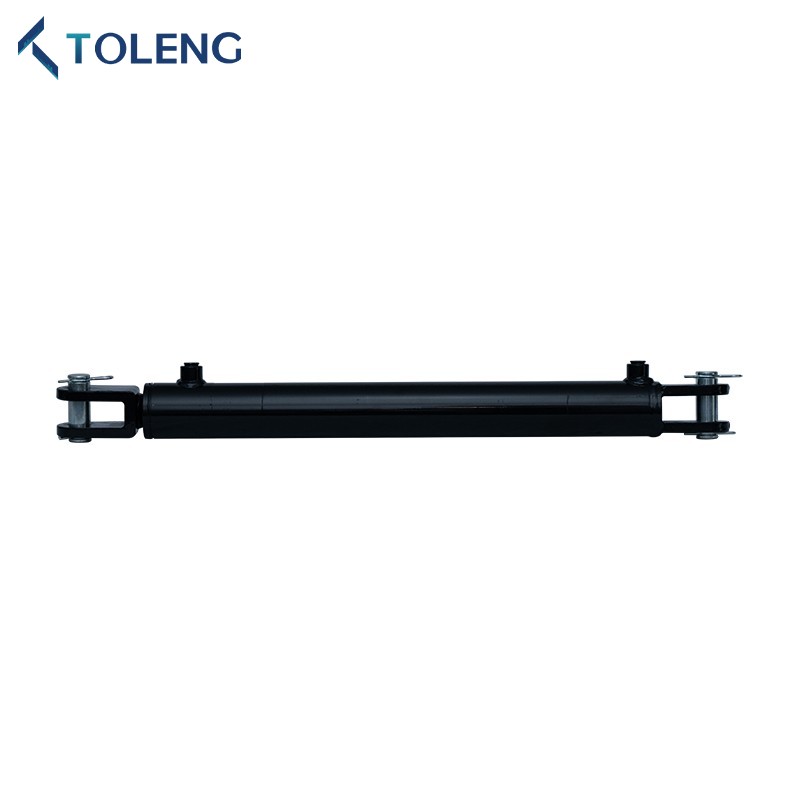

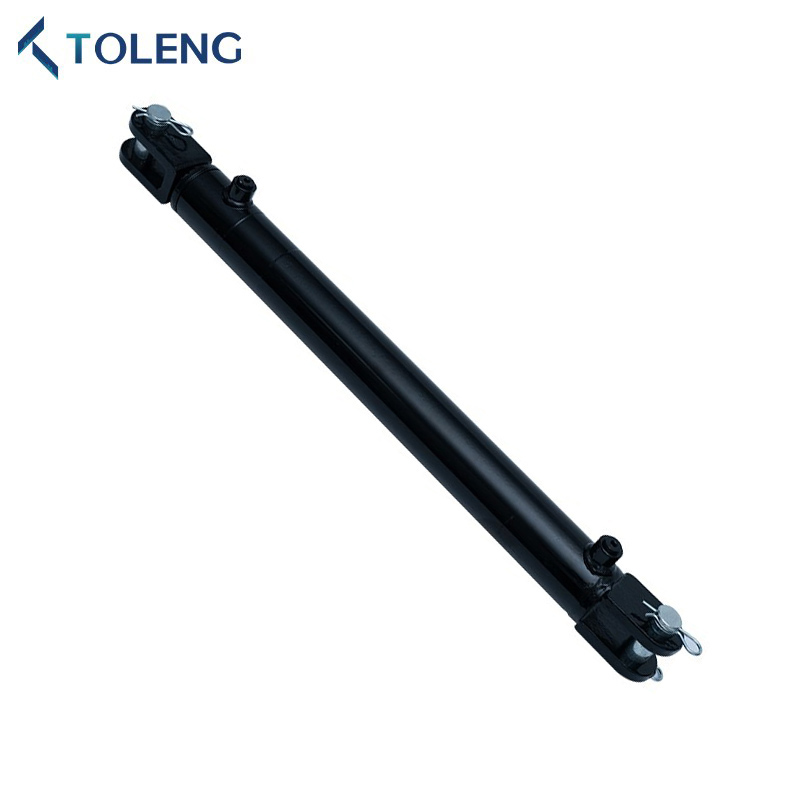

Siri WCL Standard Silinder Hidraulik
Toleng adalah pembekal silinder hidraulik yang terkenal untuk aplikasi perindustrian di China. Silinder kami memenuhi setiap standard industri utama, dengan spesifikasi lain yang tersedia atas permintaan. Semua siri Toleng Standard WCL dikimpal silinder hidraulik direka untuk menyampaikan perkhidmatan yang panjang dan cekap dengan keperluan penyelenggaraan yang rendah, menjamin produktiviti yang tinggi sepanjang hayat produk.
Hantar Pertanyaan
Penerangan Produk
Siri Toleng Standard WCL dikimpal silinder hidraulik adalah komponen khusus yang direka untuk memenuhi keperluan unik dan khusus dalam pelbagai industri. Dibuat dengan ketepatan dan inovasi, ia menawarkan prestasi dan kebolehpercayaan yang luar biasa. Kepakaran Toleng memastikan bahawa silinder ini direkayasa untuk mengatasi cabaran yang ditimbulkan oleh aplikasi yang tidak konvensional.
Silinder hidraulik siri WCL standard mudah dipasang dan mempamerkan prestasi tinggi. Setiap silinder menjalani ujian ketat yang melampaui piawaian industri, menjamin kebolehpercayaan dan prestasi maksimum. Di samping itu, mereka adalah kos yang cekap dan sentiasa permintaan tinggi.
Silinder hidraulik siri WCL standard mudah dipasang dan mempamerkan prestasi tinggi. Setiap silinder menjalani ujian ketat yang melampaui piawaian industri, menjamin kebolehpercayaan dan prestasi maksimum. Di samping itu, mereka adalah kos yang cekap dan sentiasa permintaan tinggi.
Siri WCL Standard Spesifikasi Silinder Hidraulik
1. Tekanan Kerja: 3000 psi
2.Rod: keluli, induksi keras dan bersalut krom
3.Piston: besi mulur, untuk peningkatan ketahanan
4.Tube: keluli, diasah dan ketepatan selesai
5.gland: berulir
6.Pin: keluli, bersalut zink
7.Seals: Hallite, Aston, NOK, DZ, dan lain -lain berkualiti tinggi. Boleh disesuaikan.
8.Paint: Hitam, Hijau, Merah, Kuning, dan lain -lain. Warna tersuai boleh didapati.
2.Rod: keluli, induksi keras dan bersalut krom
3.Piston: besi mulur, untuk peningkatan ketahanan
4.Tube: keluli, diasah dan ketepatan selesai
5.gland: berulir
6.Pin: keluli, bersalut zink
7.Seals: Hallite, Aston, NOK, DZ, dan lain -lain berkualiti tinggi. Boleh disesuaikan.
8.Paint: Hitam, Hijau, Merah, Kuning, dan lain -lain. Warna tersuai boleh didapati.
Parameter teknikal silinder hidraulik yang dikimpal standard
| Bahagian Nombor |
Orang dalam Diameter |
Orang luar Diameter |
*A | B | C | D | *E | F | G | H | J | K | Batang Diameter |
Pelabuhan |
| TWCL15- | 1.50 " | 2.00 " | 8.25 " | 1.62 " | 0.87 " | 1.37 " | 2.25 " | 1.37 " | 0.75 " | 0.76 " | 0.93 " | 1.87 " | 1.00 " | 3/8npt |
| TWCL20- | 2.00 " | 2.50 " | 10.25 " | 2.12 " | 1.12 " | 2.12 " | 3.12 " | 2.12 " | 1.00 " | 1.07 " | 1.00 " | 2.06 " | 1.25 " | 3/8npt |
| TWCL25- | 2.50 " | 3.00 " | 10.25 " | 2.12 " | 1.12 " | 2.12 " | 3.12 " | 2.12 " | 1.00 " | 1.01 " | 0.81 " | 2.18 " | 1.50 " | 1/2npt |
| TWCL30- | 3.00 " | 3.50 " | 10.25 " | 2.12 " | 1.12 " | 2.12 " | 3.12 " | 2.12 " | 1.00 " | 1.01 " | 0.81 " | 2.18 " | 1.50 " | 1/2npt |
| TWCL35- | 3.50 " | 4.00 " | 10.25 " | 2.37 " | 1.12 " | 2.00 " | 3.12 " | 2.12 " | 1.00 " | 1.01 " | 0.93 " | 2.18 " | 1.75 " | 1/2npt |
| TWCL40- | 4.00 " | 4.50 " | 10.25 " | 2.37 " | 1.12 " | 1.75 " | 3.12 " | 2.00 " | 1.00 " | 1.01 " | 1.06 " | 2.18 " | 2.00 " | 1/2npt |
| TWCL50- | 5.00 " | 5.50 " | 13.00 "" | 3.12 " | 1.62 " | 2.25 " | 3.62 " | 2.25 " | 1.50 " | 1.51 " | 1.37 " | 2.75 " | 2.50 " | 1/2npt |
| *Untuk 8 "strok:*a = 12.25" (2 "hingga 4" melahirkan) | ||||||||||||||
| *Untuk 8 "strok:*e = 5.12" (2 "hingga 4" melahirkan) | ||||||||||||||
| *Untuk 1.50 "hingga 4.00" Bore: Pelabuhan SAE tersedia | ||||||||||||||
| Julat suhu meterai: -30 ℃/+100 ℃ (-22 ° F/+212 ° F) | ||||||||||||||
| Kelajuan maksimum meterai: 3 kaki/saat | ||||||||||||||
| Tekanan kerja maksimum yang ditarik balik = 3000psi | ||||||||||||||
| Silinder clevis wanita yang dikimpal | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs |
|
| Ditarik balik | Dilanjutkan | ||||||
| TWCL30-1504 | 1 | 1.5 "x4" | 14-1/4 " | 18-1/4 " | 3/8 NPT | 3/4 | 8 |
| TWCL30-1506 | 1.5 "x6" | 16-1/4 " | 22-1/4 " | 9 | |||
| TWCL30-1508 | 1.5 "x8" | 18-1/4 " | 26-1/4 " | 11 | |||
| TWCL30-1510 | 1.5 "x10" | 20-1/4 " | 30-1/4 " | 12 | |||
| TWCL30-1512 | 1.5 "x12" | 22-1/4 " | 34-1/4 " | 13 | |||
| TWCL30-1514 | 1.5 "x14" | 24-1/4 " | 38-1/4 " | 14 | |||
| TWCL30-1516 | 1.5 "x16" | 26-1/4 " | 42-1/4 " | 15 | |||
| TWCL30-1518 | 1.5 "x18" | 28-1/4 " | 46-1/4 " | 17 | |||
| TWCL30-1520 | 1.5 "x20" | 30-1/4 " | 50-1/4 " | 18 | |||
| TWCL30-1524 | 1.5 "x24" | 34-1/4 " | 58-1/4 " | 20 | |||
| TWCL30-2004 | 1-1/4 " | 2 "x4" | 14-1/4 " | 18-1/4 " | 3/8 NPT | 1 " | 14 |
| TWCL30-2006 | 2 "x6" | 16-1/4 " | 22-1/4 " | 16 | |||
| TWCL30-2008 | 2 "x8" | 18-1/4 " | 26-1/4 " | 18 | |||
| TWCL30-2010 | 2 "x10" | 20-1/4 " | 30-1/4 " | 19 | |||
| TWCL30-2012 | 2 "x12" | 22-1/4 " | 34-1/4 " | 21 | |||
| TWCL30-2014 | 2 "x14" | 24-1/4 " | 38-1/4 " | 23 | |||
| TWCL30-2016 | 2 "x16" | 26-1/4 " | 42-1/4 " | 25 | |||
| TWCL30-2018 | 2 "x18" | 28-1/4 " | 46-1/4 " | 26 | |||
| TWCL30-2020 | 2 "x20" | 30-1/4 " | 50-1/4 " | 28 | |||
| TWCL30-2024 | 2 "x24" | 34-1/4 " | 58-1/4 " | 31 | |||
| TWCL30-2028 | 2 "x28" | 38-1/4 " | 66-1/4 " | 35 | |||
| TWCL30-2030 | 2 "x30" | 40-1/4 " | 70-1/4 " | 36 | |||
| TWCL30-2032 | 2 "x32" | 42-1/4 " | 74-1/4 " | 38 | |||
| TWCL30-2034 | 2 "x34" | 44-1/4 " | 78-1/4 " | 40 | |||
| TWCL30-2036 | 2 "x36" | 46-1/4 " | 82-1/4 " | 42 | |||
| TWCL30-2040 | 2 "x40" | 50-1/4 " | 90-1/4 " | 45 | |||
| TWCL30-2048 | 2 "x48" | 58-1/4 " | 106-1/4 " | 52 | |||
| TWCL30-2504 | 1-1/2 " | 2.5 "x4" | 14-1/4 " | 18-1/4 " | 1/2 NPT | 1 " | 18 |
| TWCL30-2506 | 2.5 "x6" | 16-1/4 " | 22-1/4 " | 20 | |||
| TWCL30-2508 | 2.5 "x8" | 18-1/4 " | 26-1/4 " | 24 | |||
| TWCL30-2510 | 2.5 "x10" | 20-1/4 " | 30-1/4 " | 25 | |||
| TWCL30-2512 | 2.5 "x12" | 22-1/4 " | 34-1/4 " | 27 | |||
| TWCL30-2514 | 2.5 "x14" | 24-1/4 " | 38-1/4 " | 29 | |||
| TWCL30-2516 | 2.5 "x16" | 26-1/4 " | 42-1/4 " | 32 | |||
| TWCL30-2518 | 2.5 "x18" | 28-1/4 " | 46-1/4 " | 34 | |||
| TWCL30-2520 | 2.5 "x20" | 30-1/4 " | 50-1/4 " | 36 | |||
| TWCL30-2524 | 2.5 "x24" | 34-1/4 " | 58-1/4 " | 40 | |||
| TWCL30-2528 | 2.5 "x28" | 38-1/4 " | 66-1/4 " | 45 | |||
| TWCL30-2530 | 2.5 "x30" | 40-1/4 " | 70-1/4 " | 47 | |||
| TWCL30-2532 | 2.5 "x32" | 42-1/4 " | 74-1/4 " | 49 | |||
| TWCL30-2534 | 2.5 "x34" | 44-1/4 " | 78-1/4 " | 52 | |||
| TWCL30-2536 | 2.5 "x36" | 46-1/4 " | 82-1/4 " | 54 | |||
| TWCL30-2540 | 2.5 "x40" | 50-1/4 " | 90-1/4 " | 58 | |||
| TWCL30-2548 | 2.5 "x48" | 58-1/4 " | 106-1/4 " | 67 | |||
| Clevis Clevis Welded Clevis er | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| TWCL30-3004 | 1-1/2 " | 3 "x4" | 14-1/4 " | 18-1/4 " | 1/2npt | 1 " | 22 |
| TWCL30-3006 | 3 "x6" | 16-1/4 " | 22-1/4 " | 24 | |||
| TWCL30-3008 | 3 "x8" | 18-1/4 " | 26-1/4 " | 27 | |||
| TWCL30-3010 | 3 "x10" | 20-1/4 " | 30-1/4 " | 29 | |||
| TWCL30-3012 | 3 "x12" | 22-1/4 " | 34-1/4 " | 31 | |||
| TWCL30-3014 | 3 "x14" | 24-1/4 " | 38-1/4 " | 34 | |||
| TWCL30-3016 | 3 "x16" | 26-1/4 " | 42-1/4 " | 36 | |||
| TWCL30-3018 | 3 "x18" | 28-1/4 " | 46-1/4 " | 39 | |||
| TWCL30-3020 | 3 "x20" | 30-1/4 " | 50-1/4 " | 41 | |||
| TWCL30-3024 | 3 "x24" | 34-1/4 " | 58-1/4 " | 46 | |||
| TWCL30-3028 | 3 "x28" | 38-1/4 " | 66-1/4 " | 51 | |||
| TWCL30-3030 | 3 "x30" | 40-1/4 " | 70-1/4 " | 53 | |||
| TWCL30-3032 | 3 "x32" | 42-1/4 " | 74-1/4 " | 56 | |||
| TWCL30-3034 | 3 "x34" | 44-1/4 " | 78-1/4 " | 58 | |||
| TWCL30-3036 | 3 "x36" | 46-1/4 " | 82-1/4 " | 61 | |||
| TWCL30-3040 | 3 "x40" | 50-1/4 " | 90-1/4 " | 66 | |||
| TWCL30-3048 | 3 "x48" | 58-1/4 " | 106-1/4 " | 75 | |||
| TWCL30-3504 | 1-3/4 " | 3.5 "x4" | 14-1/4 " | 18-1/4 " | 1/2npt | 1 " | 27 |
| TWCL30-3506 | 3.5 "x6" | 16-1/4 " | 22-1/4 " | 30 | |||
| TWCL30-3508 | 3.5 "x8" | 18-1/4 " | 26-1/4 " | 35 | |||
| TWCL30-3510 | 3.5 "x10" | 20-1/4 " | 30-1/4 " | 36 | |||
| TWCL30-3512 | 3.5 "x12" | 22-1/4 " | 34-1/4 " | 39 | |||
| TWCL30-3514 | 3.5 "x14" | 24-1/4 " | 38-1/4 " | 42 | |||
| TWCL30-3516 | 3.5 "x16" | 26-1/4 " | 42-1/4 " | 46 | |||
| TWCL30-3518 | 3.5 "x18" | 28-1/4 " | 46-1/4 " | 49 | |||
| TWCL30-3520 | 3.5 "x20" | 30-1/4 " | 50-1/4 " | 52 | |||
| TWCL30-3524 | 3.5 "x24" | 34-1/4 " | 58-1/4 " | 58 | |||
| TWCL30-3528 | 3.5 "x28" | 38-1/4 " | 66-1/4 " | 64 | |||
| TWCL30-3530 | 3.5 "x30" | 40-1/4 " | 70-1/4 " | 67 | |||
| TWCL30-3532 | 3.5 "x32" | 42-1/4 " | 74-1/4 " | 70 | |||
| TWCL30-3534 | 3.5 "x34" | 44-1/4 " | 78-1/4 " | 73 | |||
| TWCL30-3536 | 3.5 "x36" | 46-1/4 " | 82-1/4 " | 76 | |||
| TWCL30-3540 | 3.5 "x40" | 50-1/4 " | 90-1/4 " | 82 | |||
| TWCL30-3548 | 3.5 "x48" | 58-1/4 " | 106-1/4 " | 94 | |||
| Silinder clevis wanita yang dikimpal | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| TWCL30-4004 | 2 " | 4.0 "x4" | 14-1/4 " | 18-1/4 " | 1/2npt | 1 " | 33 |
| TWCL30-4006 | 4.0 "x6" | 16-1/4 " | 22-1/4 " | 37 | |||
| TWCL30-4008 | 4.0 "x8" | 18-1/4 " | 26-1/4 " | 42 | |||
| TWCL30-4010 | 4.0 "x10" | 20-1/4 " | 30-1/4 " | 44 | |||
| TWCL30-4012 | 4.0 "x12" | 22-1/4 " | 34-1/4 " | 48 | |||
| TWCL30-4014 | 4.0 "x14" | 24-1/4 " | 38-1/4 " | 52 | |||
| TWCL30-4016 | 4.0 "x16" | 26-1/4 " | 42-1/4 " | 55 | |||
| TWCL30-4018 | 4.0 "x18" | 28-1/4 " | 46-1/4 " | 59 | |||
| TWCL30-4020 | 4.0 "x20" | 30-1/4 " | 50-1/4 " | 63 | |||
| TWCL30-4024 | 4.0 "x24" | 34-1/4 " | 58-1/4 " | 70 | |||
| TWCL30-4028 | 4.0 "x28" | 38-1/4 " | 66-1/4 " | 77 | |||
| TWCL30-4030 | 4.0 "x30" | 40-1/4 " | 70-1/4 " | 81 | |||
| TWCL30-4032 | 4.0 "x32" | 42-1/4 " | 74-1/4 " | 85 | |||
| TWCL30-4034 | 4.0 "x34" | 44-1/4 " | 78-1/4 " | 89 | |||
| TWCL30-4036 | 4.0 "x36" | 46-1/4 " | 82-1/4 " | 92 | |||
| TWCL30-4040 | 4.0 "x40" | 50-1/4 " | 90-1/4 " | 100 | |||
| TWCL30-4048 | 4.0 "x48" | 58-1/4 " | 106-1/4 " | 114 | |||
| TWCL30-5004 | 2-1/2 " | 5.0 "x4" | 16-1/4 " | 20-1/4 " | 1/2npt | 1 " | 64 |
| TWCL30-5006 | 5.0 "x6" | 18-1/4 " | 24-1/4 " | 69 | |||
| TWCL30-5008 | 5.0 "x8" | 20-1/4 " | 28-1/4 " | 74 | |||
| TWCL30-5010 | 5.0 "x10" | 22-1/4 " | 32-1/4 " | 79 | |||
| TWCL30-5012 | 5.0 "x12" | 24-1/4 " | 36-1/4 " | 84 | |||
| TWCL30-5014 | 5.0 "x14" | 26-1/4 " | 40-1/4 " | 89 | |||
| TWCL30-5016 | 5.0 "x16" | 28-1/4 " | 42-1/4 " | 95 | |||
| TWCL30-5018 | 5.0 "x18" | 30-1/4 " | 48-1/4 " | 100 | |||
| TWCL30-5020 | 5.0 "x20" | 32-1/4 " | 52-1/4 " | 105 | |||
| TWCL30-5024 | 5.0 "x24" | 36-1/4 " | 60-1/4 " | 115 | |||
| TWCL30-5028 | 5.0 "x28" | 40-1/4 " | 68-1/4 " | 125 | |||
| TWCL30-5030 | 5.0 "x30" | 42-1/4 " | 72-1/4 " | 130 | |||
| TWCL30-5032 | 5.0 "x32" | 44-1/4 " | 76-1/4 " | 136 | |||
| TWCL30-5034 | 5.0 "x34" | 46-1/4 " | 80-1/4 " | 141 | |||
| TWCL30-5036 | 5.0 "x36" | 48-1/4 " | 84-1/4 " | 146 | |||
| TWCL30-5040 | 5.0 "x40" | 52-1/4 " | 92-1/4 " | 156 | |||
| TWCL30-5048 | 5.0 "x48" | 60-1/4 " | 108-1/4 " | 177 | |||
Perincian silinder hidraulik yang dikimpal standard
