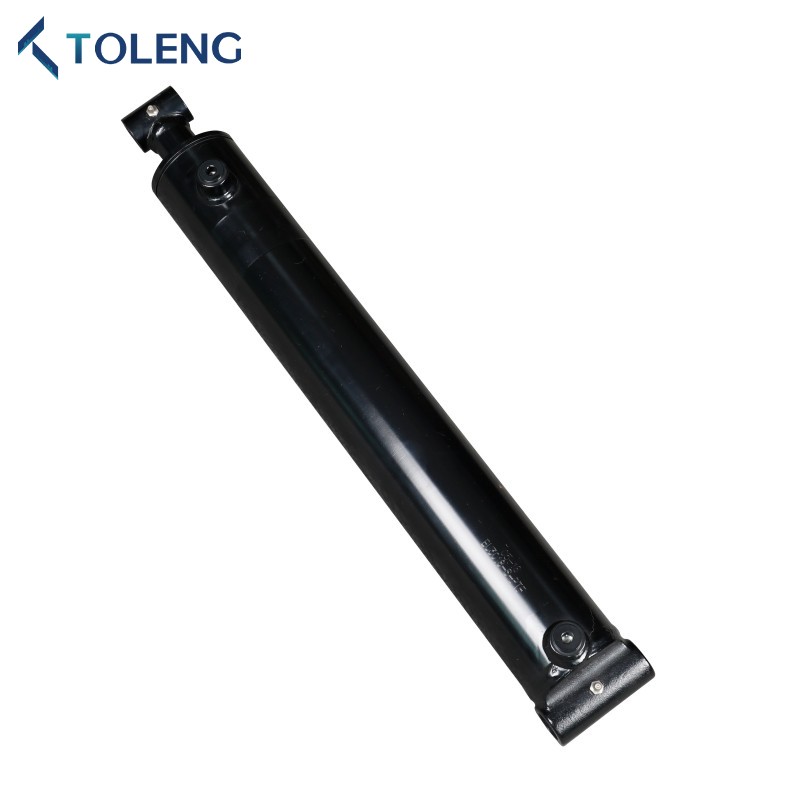

Siri WBU Standard Silinder Hidraulik
Toleng adalah pengeluar silinder hidraulik berasaskan Cina. Berkhidmat di Amerika Utara, Eropah dan banyak negara lain di seluruh dunia, kami menawarkan silinder hidraulik WBU yang berkualiti tinggi pada harga yang sangat berpatutan. Mereka direka untuk menyampaikan perkhidmatan yang panjang dan cekap dengan keperluan penyelenggaraan yang rendah, menjamin produktiviti yang tinggi sepanjang hayat produk.
Hantar Pertanyaan
Penerangan Produk
Toleng Standard WBU Series dikimpal silinder hidraulik sebahagian besarnya digunakan dalam pelbagai aplikasi perindustrian yang menuntut seperti jentera pertanian, jentera pembinaan, kenderaan, jentera laut, dan lain -lain. Mereka mempunyai bahagian pasaran yang besar di Amerika Utara dan sangat dituntut.
Kukuh dan boleh dipercayai, setiap silinder WBU tertakluk kepada ujian yang ketat yang melebihi piawaian industri, memberikan prestasi maksimum. Reka bentuk padat dan lasak mereka menjadikan mereka sesuai untuk menahan keadaan operasi dan persekitaran yang keras. Selain itu, mereka mudah memasang dan menunjukkan prestasi tinggi, dengan kelebihan harga dan masa penghantaran.
Kukuh dan boleh dipercayai, setiap silinder WBU tertakluk kepada ujian yang ketat yang melebihi piawaian industri, memberikan prestasi maksimum. Reka bentuk padat dan lasak mereka menjadikan mereka sesuai untuk menahan keadaan operasi dan persekitaran yang keras. Selain itu, mereka mudah memasang dan menunjukkan prestasi tinggi, dengan kelebihan harga dan masa penghantaran.
Parameter teknikal silinder hidraulik yang dikimpal standard
1. Tekanan Kerja: 3000 psi
2.Rod: keluli, induksi keras dan bersalut krom
3.Piston: besi mulur, untuk peningkatan ketahanan
4.Tube: keluli, diasah dan ketepatan selesai
5.gland: berulir
6.Pin: keluli, bersalut zink
7.Seals: Hallite, Aston, NOK, DZ, dan lain -lain berkualiti tinggi. Boleh disesuaikan.
8.Paint: Hitam, Hijau, Merah, Kuning, dan lain -lain. Warna tersuai boleh didapati.
2.Rod: keluli, induksi keras dan bersalut krom
3.Piston: besi mulur, untuk peningkatan ketahanan
4.Tube: keluli, diasah dan ketepatan selesai
5.gland: berulir
6.Pin: keluli, bersalut zink
7.Seals: Hallite, Aston, NOK, DZ, dan lain -lain berkualiti tinggi. Boleh disesuaikan.
8.Paint: Hitam, Hijau, Merah, Kuning, dan lain -lain. Warna tersuai boleh didapati.
Parameter
| Bahagian Nombor |
Orang dalam Diameter |
Orang luar Diameter |
A | B | C | D | E | F | G | H | Batang Diameter |
Pelabuhan |
| TWBU15- | 1.50 " | 2.00 " | 8.00 " | 1.25 " | 0.76 " | 2.62 " | 2.25 " | 2.00 " | 1.06 " | 1.87 " | 1.00 " | 1/4npt |
| Twbu20- | 2.00 " | 2.50 " | 8.00 " | 1.50 " | 1.01 " | 2.25 " | 2.75 " | 2.25 " | 1.00 " | 2.06 " | 1.25 " | 3/8npt |
| Twbu25- | 2.50 " | 3.00 " | 8.00 " | 1.50 " | 1.07 " | 2.25 " | 3.25 " | 2.25 " | 0.81 " | 2.18 " | 1.50 " | 1/2npt |
| Twbu30- | 3.00 " | 3.50 " | 8.00 " | 1.50 " | 1.07 " | 2.25 " | 3.75 " | 2.25 " | 0.81 " | 2.18 " | 1.50 " | 1/2npt |
| Twbu35- | 3.50 " | 4.00 " | 10.00 " | 2.00 " | 1.26 " | 4.00 " | 4.25 " | 2.25 " | 0.81 " | 2.18 " | 1.75 " | 1/2npt |
| Sudah 40- | 4.00 " | 4.50 " | 10.00 " | 2.25 " | 1.51 " | 3.75 " | 4.75 " | 2.50 " | 0.81 " | 2.18 " | 2.00 " | 1/2npt |
| Twbu50- | 5.00 " | 5.50 " | 10.00 " | 3.00 " | 1.76 " | 3.20 " | 5.75 " | 3.25 " | 1.25 " | 2.75 " | 2.50 " | 1/2npt |
| *Untuk 5.00 "menanggung: 2.00" pin boleh didapati dengan sesendal yang boleh ditanggalkan | ||||||||||||
| *Untuk port SAE 1.50 "to4.00" ada | ||||||||||||
| Julat suhu meterai: -30 ℃/+100 ℃ -22F/+212 ° F) | ||||||||||||
| Kelajuan maksimum meterai: 3 kaki/saat | ||||||||||||
| Tekanan kerja maksimum yang ditarik = 3000 psi | ||||||||||||
| Silinder bushing dikimpal | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| TWBU30-1504 | 1 " | 1.5 "x4" | 12 " | 16 " | 1/4npt | 3/4 " | 8 |
| TWBU30-1506 | 1.5 "x6" | 14 " | 20 " | 9 | |||
| TWBU30-1508 | 1.5 "x8" | 16 " | 24 " | 10 | |||
| TWBU30-1510 | 1.5 "x10" | 18 " | 28 " | 11 | |||
| TWBU30-1512 | 1.5 "x12" | 20 " | 32 " | 13 | |||
| TWBU30-1514 | 1.5 "x14" | 22 " | 36 " | 14 | |||
| TWBU30-1516 | 1.5 "x16" | 24 " | 40 " | 15 | |||
| TWBU30-1518 | 1.5 "x18" | 26 " | 44 " | 16 | |||
| TWBU30-1520 | 1.5 "x20" | 28 " | 48 " | 18 | |||
| TWBU30-1524 | 1.5 "x24" | 32 " | 56 " | 20 | |||
| TWBU30-2004 | 1-1/4 " | 2 "x4" | 12 " | 16 " | 3/8npt | 1 " | 12 |
| TWBU30-2006 | 2 "x6" | 14 " | 20 " | 13 | |||
| TWBU30-2008 | 2 "x8" | 16 " | 24 " | 15 | |||
| TWBU30-2010 | 2 "x10" | 18 " | 28 " | 17 | |||
| TWBU30-2012 | 2 "x12" | 20 " | 32 " | 19 | |||
| TWBU30-2014 | 2 "x14" | 22 " | 36 " | 20 | |||
| TWBU30-2016 | 2 "x16" | 24 " | 40 " | 22 | |||
| TWBU30-2018 | 2 "x18" | 26 " | 44 " | 24 | |||
| TWBU30-2020 | 2 "x20" | 28 " | 48 " | 25 | |||
| TWBU30-2024 | 2 "x24" | 32 " | 56 " | 29 | |||
| TWBU30-2028 | 2 "x28" | 36 " | 64 " | 32 | |||
| TWBU30-2030 | 2 "x30" | 38 " | 68 " | 34 | |||
| TWBU30-2032 | 2 "x32" | 40 " | 72 " | 36 | |||
| TWBU30-2036 | 2 "x36" | 44 " | 80 " | 39 | |||
| TWBU30-2040 | 2 "x40" | 48 " | 88 " | 42 | |||
| TWBU30-2048 | 2 "x48" | 56 " | 104 " | 49 | |||
| TWBU30-2504 | 1-1/2 " | 2.5 "x4" | 12 " | 16 " | 1/2npt | 1 " | 16 |
| TWBU30-2506 | 2.5 "x6" | 14 " | 20 " | 18 | |||
| TWBU30-2508 | 2.5 "x8" | 16 " | 24 " | 20 | |||
| TWBU30-2510 | 2.5 "x10" | 18 " | 28 " | 22 | |||
| TWBU30-2512 | 2.5 "x12" | 20 " | 32 " | 25 | |||
| TWBU30-2514 | 2.5 "x14" | 22 " | 36 " | 27 | |||
| TWBU30-2516 | 2.5 "x16" | 24 " | 40 " | 29 | |||
| TWBU30-2518 | 2.5 "x18" | 26 " | 44 " | 31 | |||
| TWBU30-2520 | 2.5 "x20" | 28 " | 48 " | 34 | |||
| TWBU30-2524 | 2.5 "x24" | 32 " | 56 " | 38 | |||
| TWBU30-2528 | 2.5 "x28" | 36 " | 64 " | 43 | |||
| TWBU30-2530 | 2.5 "x30" | 38 " | 68 " | 45 | |||
| TWBU30-2532 | 2.5 "x32" | 40 " | 72 " | 47 | |||
| TWBU30-2536 | 2.5 "x36" | 44 " | 80 ” | 51 | |||
| TWBU30-2540 | 2.5 "x40" | 48 " | 88 " | 56 | |||
| TWBU30-2548 | 2.5 "x48" | 56 " | 104 " | 65 | |||
| Silinder bushing dikimpal | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dime | Nsions | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
| Ditarik balik | Dilanjutkan | ||||||
| TWBU30-3004 | 1-1/2 " | 3 "x4" | 12 " | 16 " | 1/2npt | 1 " | 19 |
| TWBU30-3006 | 3 "x6" | 14 " | 20 " | 22 | |||
| TWBU30-3008 | 3 "x8" | 16 " | 24 " | 24 | |||
| TWBU30-3010 | 3 "x10" | 18 " | 28 " | 27 | |||
| TWBU30-3012 | 3 "x12" | 20 " | 32 " | 29 | |||
| TWBU30-3014 | 3 "x14" | 22 " | 36 " | 32 | |||
| TWBU30-3016 | 3 "x16" | 24 " | 40 " | 34 | |||
| TWBU30-3018 | 3 "x18" | 26 " | 44 " | 36 | |||
| TWBU30-3020 | 3 "x20" | 28 " | 48 " | 39 | |||
| TWBU30-3024 | 3 "x24" | 32 " | 56 " | 44 | |||
| TWBU30-3028 | 3 "x28" | 36 " | 64 " | 49 | |||
| TWBU30-3030 | 3 "x30" | 38 " | 68 " | 51 | |||
| TWBU30-3032 | 3 "x32" | 40 " | 72 " | 54 | |||
| TWBU30-3036 | 3 "x36" | 44 " | 80 " | 59 | |||
| TWBU30-3040 | 3 "x40" | 48 " | 88 " | 63 | |||
| TWBU30-3048 | 3 "x48" | 56 " | 104 " | 73 | |||
| TWBU30-3504 | 1-3/4 " | 3.5 "x4" | 14 " | 18 " | 1/2npt | 1-1/4 " | 27 |
| TWBU30-3506 | 3.5 "x6" | 16 " | 22 " | 30 | |||
| TWBU30-3508 | 3.5 "x8" | 18 " | 26 " | 33 | |||
| TWBU30-3510 | 3.5 "x10" | 20 " | 30 "" | 36 | |||
| TWBU30-3512 | 3.5 "x12" | 22 " | 34 " | 39 | |||
| TWBU30-3514 | 3.5 "x14" | 24 " | 38 " | 42 | |||
| TWBU30-3516 | 3.5 "x16" | 26 " | 42 " | 45 | |||
| TWBU30-3518 | 3.5 "x18" | 28 " | 46 " | 48 | |||
| TWBU30-3520 | 3.5 "x20" | 30 "" | 50 " | 51 | |||
| TWBU30-3524 | 3.5 "x24" | 34 " | 58 " | 57 | |||
| TWBU30-3528 | 3.5 "x28" | 38 " | 66 " | 64 | |||
| TWBU30-3530 | 3.5 "x30" | 40 " | 70 " | 67 | |||
| TWBU30-3532 | 3.5 "x32" | 42 " | 74 " | 70 | |||
| TWBU30-3536 | 3.5 "x36" | 46 " | 82 ” | 76 | |||
| TWBU30-3540 | 3.5 "x40" | 50 " | 90 " | 82 | |||
| TWBU30-3548 | 3.5 "x48" | 58 " | 106 " | 94 | |||
| Silinder bushing dikimpal | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| TWBU30-4004 | 2 " | 4 "x4" | 14 " | 18 " | 1/2 NPT | 1-1/2 " | 34 |
| TWBU30-4006 | 4 "x6" | 16 " | 22 " | 38 | |||
| TWBU30-4008 | 4 "x8" | 18 " | 26 " | 41 | |||
| TWBU30-4010 | 4 "x10" | 20 " | 30 "" | 45 | |||
| TWBU30-4012 | 4 "x12" | 22 " | 34 " | 49 | |||
| TWBU30-4014 | 4 "x14" | 24 " | 38 " | 52 | |||
| TWBU30-4016 | 4 "x16" | 26 " | 42 " | 56 | |||
| TWBU30-4018 | 4 "x18" | 28 " | 46 " | 60 | |||
| TWBU30-4020 | 4 "x20" | 30 "" | 50 " | 63 | |||
| TWBU30-4024 | 4 "x24" | 34 " | 58 " | 71 | |||
| TWBU30-4028 | 4 "x28" | 38 " | 66 " | 78 | |||
| TWBU30-4030 | 4 "x30" | 40 " | 70 " | 82 | |||
| TWBU30-4032 | 4 "x32" | 42 " | 74 " | 85 | |||
| TWBU30-4036 | 4 "x36" | 46 " | 82 " | 93 | |||
| TWBU30-4040 | 4 "x40" | 50 " | 90 " | 100 | |||
| TWBU30-4048 | 4 "x48" | 58 " | 106 " | 115 | |||
| TWBU30-5004 | 2-1/2 " | 5 "x4" | 14 " | 18 " | 1/2 NPT | 1-3/4 " | 65 |
| TWBU30-5006 | 5 "x6" | 16 " | 22 " | 70 | |||
| TWBU30-5008 | 5 "x8" | 18 " | 26 " | 75 | |||
| TWBU30-5010 | 5 "x10" | 20 " | 30 "" | 80 | |||
| TWBU30-5012 | 5 "x12" | 22 " | 34 " | 85 | |||
| TWBU30-5014 | 5 "x14" | 24 " | 38 " | 90 | |||
| TWBU30-5016 | 5 "x16" | 26 " | 42 ” | 96 | |||
| TWBU30-5018 | 5 "x18" | 28 " | 46 ” | 101 | |||
| TWBU30-5020 | 5 "x20" | 30 "" | 50 " | 106 | |||
| TWBU30-5024 | 5 "x24" | 34 " | 58 " | 116 | |||
| TWBU30-5028 | 5 "x28" | 38 " | 66 " | 126 | |||
| TWBU30-5030 | 5 "x30" | 40 " | 70 " | 131 | |||
| TWBU30-5032 | 5 "x32" | 42 ” | 74 " | 137 | |||
| TWBU30-5036 | 5 "x36" | 46 " | 82 " | 147 | |||
| TWBU30-5040 | 5 "x40" | 50 " | 90 " | 157 | |||
| TWBU30-5048 | 5 "x48" | 58 " | 106 " | 178 | |||
