Silinder hidraulik tali leher siri TR standard
Toleng adalah pengeluar dan pembekal silinder hidraulik profesional di China. Kami telah khusus dalam silinder hidraulik untuk silinder hidraulik tali leher TR siri standard selama lebih dari 20 tahun. Produk kami telah dieksport kepada pengguna di seluruh dunia dan telah menerima reputasi yang baik. Kami berharap dapat mewujudkan perkongsian perniagaan jangka panjang dengan anda.
Hantar Pertanyaan
Penerangan Produk

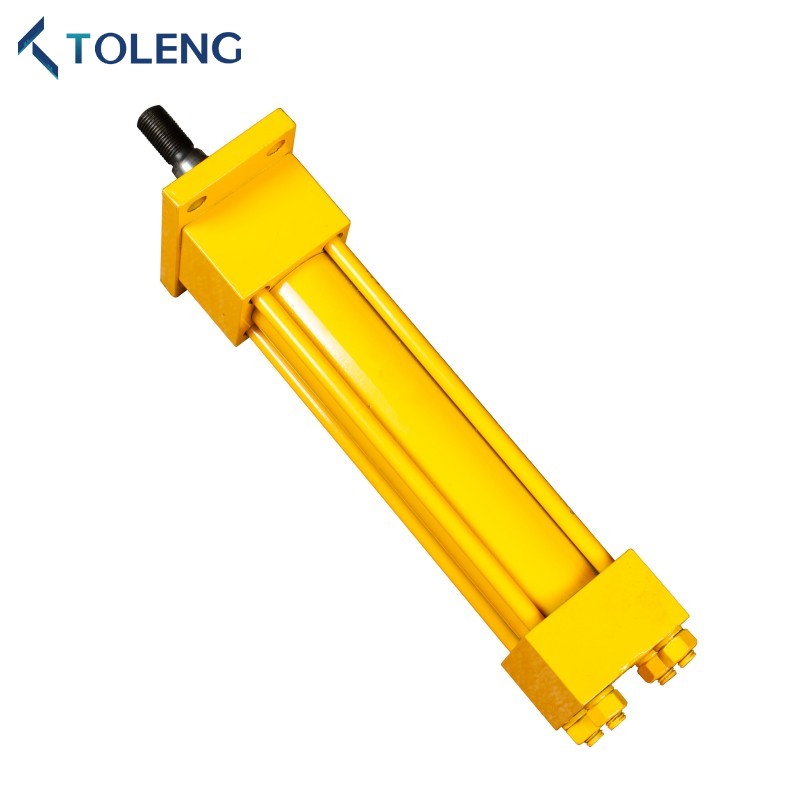

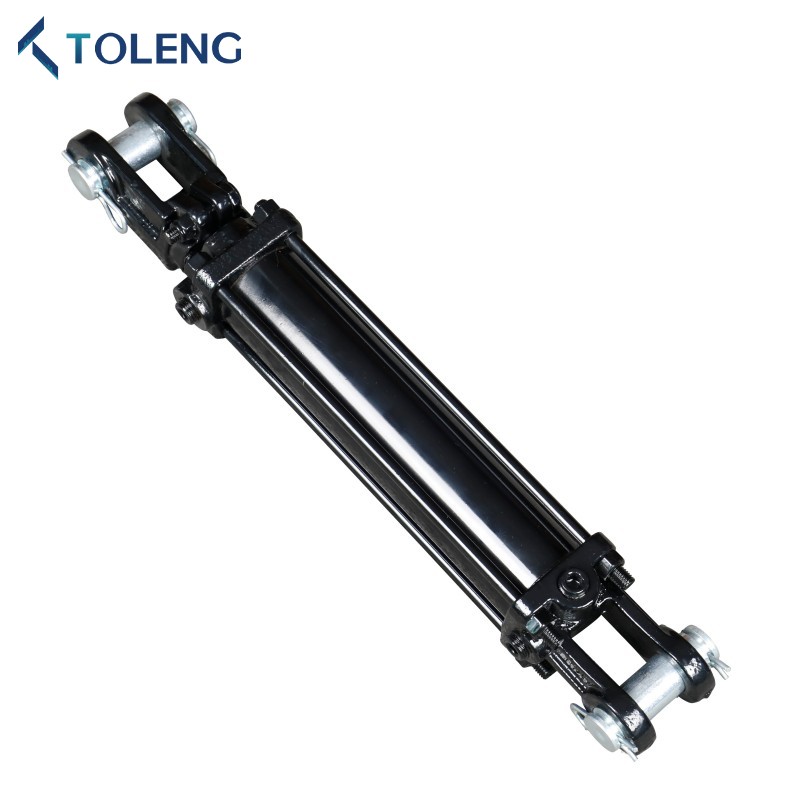

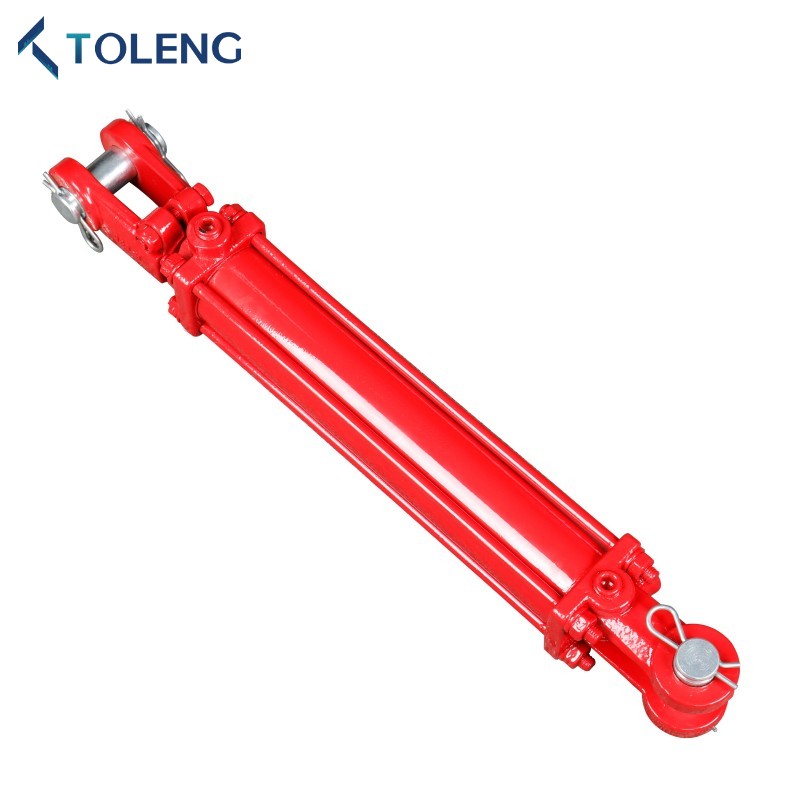

Toleng Standard TR Series Tie-Rod Hydraulic Silinder adalah komponen penting dalam bidang jentera pertanian, yang terkenal dengan prestasi yang boleh dipercayai dan cekap. Ia direka dengan teliti dengan ketepatan dan ketahanan, menjamin lancar dalam pelbagai aplikasi pertanian. Silinder Hidraulik Siri TR Standard TR kami datang dengan pelbagai spesifikasi untuk memenuhi keperluan khusus.
Aplikasi Silinder Hidraulik Siri TR Standard TR
Toleng Standard TR Series Tie-Rod Hydraulic Silinder mendapati penggunaan yang luas terutamanya dalam industri jentera pertanian. Ia sering digunakan dalam pelbagai mesin pertanian seperti lampiran traktor, menggabungkan penuai, penyokong, dll.
Spesifikasi Silinder Hidraulik Siri TR Standard
1. aplikasi bertindak
2.Tube: Pipa Dilukis Dingin Berkualiti Tinggi/Skived
3. Rod Pusat: Kekuatan Tinggi Hardened, Hard Chrome-Plated
4.Piston: besi mulur
5.-Rods: Keluli tegangan tinggi
6. Tekanan Kerja: 2500/3000 psi
7.Paint: Hitam, Hijau, Merah, Kuning, dan lain -lain. Warna tersuai boleh didapati.
2.Tube: Pipa Dilukis Dingin Berkualiti Tinggi/Skived
3. Rod Pusat: Kekuatan Tinggi Hardened, Hard Chrome-Plated
4.Piston: besi mulur
5.-Rods: Keluli tegangan tinggi
6. Tekanan Kerja: 2500/3000 psi
7.Paint: Hitam, Hijau, Merah, Kuning, dan lain -lain. Warna tersuai boleh didapati.
Parameter teknikal silinder hidraulik siri TR standard
| Bahagian Nombor |
Orang dalam Diameter |
Orang luar Diameter |
*A | B | *C | D | *E | F | *G | H | I | J | Batang Benang |
Pelabuhan |
| TTR3-20- | 2.00 " | 2.50 " | 10.25 " | 2.00 " | 1.01 " | 2.00 " | 3.75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.125-12 UNF | SAE#8 |
| TTR3-25- | 2.50 " | 3.00 " | 10.25 " | 2.00 " | 1.01 " | 2.00 " | 3.75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.125-12 UNF | SAE#8 |
| TTR3-30- | 3.00 " | 3.50 " | 10.25 " | 2.25 " | 1.01 " | 2.25 " | 3.75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.250-12 UNF | SAE#8 |
| TTR3-35- | 3.50 " | 4.00 " | 10.25 " | 2.50 " | 1.01 " | 2.50 " | 3.62 " | 2.50 " | 1.12 " | 2.06 " | 2.12 " | 2.75 " | 1.250-12 UNF | SAE#8 |
| TTR3-40- | 4.00 " | 4.50 " | 10.25 " | 2.50 " | 1.01 " | 2.50 " | 3.56 " | 2.62 " | 1.12 " | 2.06 " | 2.12 " | 2.75 " | 1.250-12 UNF | SAE#8 |
| TTR3-50-50 | 5.00 " | 5.50 " | 12.25 " | 2.87 " | 1.26 " | 2.75 " | 4.18 " | 3.50 " | 1.12 " | 2.25 " | 2.12 " | 3.31 " | 1.500-12 UNF | SAE#10 |
| *Untuk 8.00 "Asae Stroke:*A = 12.25" dan untuk 16.00 "Asae Stroke:*A = 15.50" | ||||||||||||||
| *Untuk 8.00 "strok:*e = 5.75" (2.00 "hingga 3.00" bore)*e = 5.62 "(3.50" bore)*e = 5.56 "(4.00" melahirkan) | ||||||||||||||
| *Untuk 16.00 "Asae Stroke:*E = 9.00" (2.00 "hingga 3.00" Bore)*E = 8.87 "(3.50" Bore)*E = 8.81 "(4.00" Bore) = 7.43 "(5.00" Bore) | ||||||||||||||
| *Untuk 5.00 "melahirkan:*g (Clevis depan) = 1.18"*g (akhir topi) = 1.31 " | ||||||||||||||
| *For16.00 "Asae Strokea:*C = 126" | ||||||||||||||
| Julat suhu meterai: -30 ℃/+100 ℃ (-22 "f/+212" f) | ||||||||||||||
| Kelajuan maksimum meterai: 3 kaki/saat | ||||||||||||||
| Tekanan kerja maksimum yang ditarik = 3000 psi | ||||||||||||||
| Dimensi *a dan *e adalah untuk rujukan hanya kerana Clevis boleh laras | ||||||||||||||
| Silinder tie-rod | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| TTR30-2004 | 1-1/8 " | 2 "x4" | 14-1/4 " | 18-1/4 " | 3/8 "NPT & SAE#8 |
1 " | 16.8 |
| TTR30-2006 | 2 "x6" | 16-1/4 " | 22-1/4 " | 18.4 | |||
| TTR30-2008 | 2 "x8" | 18-1/4 " | 26-1/4 " | 20.0 | |||
| TTR30-2008-AASA | 2 "x8" | 20-1/4 " | 28-1/4 " | 20.5 | |||
| TTR30-2010 | 2 "x10" | 20-1/4 " | 30-1/4 " | 21.5 | |||
| TTR30-2012 | 2 "x12" | 22-1/4 " | 34-1/4 " | 23.1 | |||
| TTR30-2014 | 2 "x14" | 24-1/4 " | 38-1/4 " | 24.7 | |||
| TTR30-2016 | 2 "x16" | 26-1/4 " | 42-1/4 " | 26.3 | |||
| TTR30-2016-ASAE | 2 "x16" | 31-1/4 " | 47-1/4 " | 26.9 | |||
| TTR30-2018 | 2 "x18" | 28-1/4 " | 46-1/4 " | 279 | |||
| TTR30-2020 | 2 "x20" | 30-1/4 " | 50-1/4 " | 29.5 | |||
| TTR30-2024 | 2 "x24" | 34-1/4 " | 58-1/4 " | 32.6 | |||
| TTR30-2030 | 2 "x30" | 40-1/4 " | 70-1/4 " | 37.4 | |||
| TTR30-2036 | 2 "x36" | 46-1/4 " | 82-1/4 " | 42.2 | |||
| TTR30-2040 | 2 "x40" | 50-1/4 " | 90-1/4 " | 45.3 | |||
| TTR30-2048 | 2 "x48" | 58-1/4 " | 106-1/4 " | 51.7 | |||
| TTR30-2504 | 1-1/4 " | 2.5 "x4" | 14-1/4 " | 18-1/4 " | 3/8 "NPT & SAE# |
1 ” | 18.6 |
| TTR30-2506 | 2.5 "x6" | 16-1/4 " | 22-1/4 " | 20.9 | |||
| TTR30-2508 | 2.5 "x8" | 18-1/4 " | 26-1/4 " | 22.8 | |||
| TTR30-2508-ASAE | 2.5 "x8" | 20-1/4 " | 28-1/4 " | 23.6 | |||
| TTR30-2510 | 2.5 "x10" | 20-1/4 " | 30-1/4 " | 25.5 | |||
| TTR30-2512 | 2.5 "x12" | 22-1/4 " | 34-1/4 " | 27.8 | |||
| TTR30-2514 | 2.5 "x14" | 24-1/4 " | 38-1/4 " | 30.2 | |||
| TTR30-2516 | 2.5 "x16" | 26-1/4 " | 42-1/4 " | 32.5 | |||
| TTR30-2516-AASA | 2.5 "x16" | 31-1/4 " | 47-1/4 " | 33.4 | |||
| TTR30-2518 | 2.5 "x18" | 28-1/4 " | 46-1/4 " | 34.8 | |||
| TTR30-2520 | 2.5 "x20" | 30-1/4 " | 50-1/4 " | 371 | |||
| TTR30-2524 | 2.5 "x24" | 34-1/4 " | 58-1/4 " | 41.8 | |||
| TTR30-2530 | 2.5 "x30" | 40-1/4 " | 70-1/4 " | 43.6 | |||
| TTR30-2536 | 2.5 "x36" | 46-1/4 " | 82-1/4 " | 49.6 | |||
| TTR30-2540 | 2.5 "x40" | 50-1/4 " | 90-1/4 " | 53.7 | |||
| TTR30-2548 | 2.5 "x48" | 58-1/4 " | 106-1/4 " | 61.7 | |||
| Silinder tie-rod | |||||||
| Nombor bahagian | Batang Diameter |
Bor8 Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| TTR30-3004 | 1-1/4 " | 3 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 22.1 |
| TTR30-3006 | 3 "x6" | 16-1/4 " | 22-1/4 " | 24.0 | |||
| TTR30-3008 | 3 "x8" | 18-1/4 " | 26-1/4 " | 26.1 | |||
| TTR30-3008-ASAE | 3 "x8" | 20-1/4 " | 28-1/4 " | 8.4 | |||
| TTR30-3010 | 3 "x10" | 20-1/4 " | 30-1/4 " | 28.2 | |||
| TTR30-3012 | 3 "x12" | 22-1/4 " | 34-1/4 " | 30.3 | |||
| TTR30-3014 | 3 "x14" | 24-1/4 " | 38-1/4 " | 32.4 | |||
| TTR30-3016 | 1-1/2 " | 3 "x16" | 26-1/4 " | 42-1/4 " | 38.7 | ||
| TTR30-3016-AASA | 3 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 39.4 | ||
| TTR30-3018 | 3 "x18" | 28-1/4 " | 46-1/4 " | 1 " | 41.2 | ||
| TTR30-3020 | 3 "x20 ' | 30-1/4 " | 50-1/4 " | 43.8 | |||
| TTR30-3024 | 3 "x24 | 34-1/4 " | 58-1/4 " | 470 | |||
| TTR30-3030 | 3 "x30" | 40-1/4 " | 70-1/4 " | 54.3 | |||
| TTR30-3036 | 3 "x36" | 46-1/4 " | 82-1/4 " | 61.4 | |||
| TTR30-3040 | 3 "x40" | 50-1/4 " | 90-1/4 " | 66.2 | |||
| TTR30-3048 | 3 "x48" | 58-1/4 " | 106-1/4 " | 75.9 | |||
| TTR30-3504 | 1-1/4 " | 3.5 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 26.0 |
| TTR30-3506 | 3.5 "x6" | 16-1/4 " | 22-1/4 " | 27.8 | |||
| TTR30-3508 | 3.5 "x8" | 18-1/4 " | 26-1/4 " | 30.7 | |||
| TTR30-3508-ASAE | 3.5 "x8" | 20-1/4 " | 28-1/4 " | 9.9 | |||
| TTR30-3510 | 3.5 "x10" | 20-1/4 " | 30-1/4 " | 33.6 | |||
| TTR30-3512 | 3.5 "x12" | 22-1/4 " | 34-1/4 " | 36.6 | |||
| TTR30-3514 | 3.5 "x14" | 24-1/4 " | 38-1/4 " | 39.5 | |||
| TTR30-3516 | 1-1/2 " | 3.5 "x16" | 26-1/4 " | 42-1/4 " | 46.6 | ||
| TTR30-3516-AASA | 3.5 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 476 | ||
| TTR30-3518 | 3.5 "x18" | 28-1/4 " | 46-1/4 " |
1 " |
50.0 | ||
| TTR30-3520 | 3.5 "x20" | 30-1/4 " | 50-1/4 " | 53.3 | |||
| TTR30-3524 | 3.5 "x24" | 34-1/4 " | 58-1/4 " | 69.2 | |||
| TTR30-3530 | 3.5 "x30" | 40-1/4 " | 70-1/4 " | 679 | |||
| TTR30-3536 | 3.5 "x36" | 46-1/4 " | 82-1/4 " | 77.5 | |||
| TTR30-3540 | 3.5 "x40" | 50-1/4 " | 90-1/4 " | 84.0 | |||
| TTR30-3548 | 3.5 "x48" | 58-1/4 " | 106-1/4 " | 96.8 | |||
| Silinder tie-rod | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| TTR30-4004 | 1-1/2 " | 4 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 52.0 |
| TTR30-4006 | 4 "x6" | 16-1/4 " | 22-1/4 " | 55.6 | |||
| TTR30-4008 | 4 "x8" | 18-1/4 " | 26-1/4 " | 58.9 | |||
| TTR30-4008-asae | 4 "x8" | 20-1/4 " | 28-1/4 " | 18.7 | |||
| TTR30-4010 | 4 "x10" | 20-1/4 " | 30-1/4 " | 62.8 | |||
| TTR30-4012 | 4 "x12" | 22-1/4 " | 34-1/4 " | 66.4 | |||
| TTR30-4014 | 4 "x14" | 24-1/4 " | 38-1/4 " | 70.0 | |||
| TTR30-4016 | 1-3/4 " | 4 "x16" | 26-1/4 " | 42-1/4 " | 84.2 | ||
| TTR30-4016-AASA | 4 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 85.2 | ||
| TTR30-4018 | 4 "x18" | 28-1/4 " | 46-1/4 " | 1 " | 84.7 | ||
| TTR30-4020 | 4 "x20" | 30-1/4 " | 50-1/4 " | 85.1 | |||
| TTR30-4024 | 4 "x24" | 34-1/4 " | 58-1/4 " | 93.1 | |||
| TTR30-4030 | 2 " | 4 "x30" | 40-1/4 " | 70-1/4 " | 111.6 | ||
| TTR30-4036 | 4 "x36" | 46-1/4 " | 82-1/4 " | 124.8 | |||
| TTR30-4040 | 4 "x40" | 50-1/4 " | 90-1/4 " | 133.6 | |||
| TTR30-4048 | 4 "x48" | 58-1/4 " | 106-1/4 " | 151.1 | |||
| TTR30-5004 | 2 " | 5 "x4" | 16-1/4 " | 20-1/4 " | 1/2 "NPI & SAE#10 |
1-1/4 " | 59.7 |
| TTR30-5006 | 5 "x6" | 18-1/4 " | 24-1/4 " | 64.9 | |||
| TTR30-5008 | 5 "x8" | 20-1/4 " | 28-1/4 " | 70.2 | |||
| TTR30-5010 | 5 "x10" | 22-1/4 " | 32-1/4 " | 75.4 | |||
| TTR30-5012 | 5 "x12" | 24-1/4 " | 36-1/4 " | 80.7 | |||
| TTR30-5014 | 5 "x14" | 26-1/4 " | 40-1/4 " | 85.9 | |||
| TTR30-5016 | 5 "x16" | 28-1/4 " | 44-1/4 " | 91.2 | |||
| TTR30-5016-AASA | 5 "x16" | 31-1/4 " | 47-1/4 " | 92.9 | |||
| TTR30-5018 | 5 "x18" | 30-1/4 " | 48-1/4 " | 96.4 | |||
| TTR30-5020 | 5 "x20" | 32-1/4 " | 52-1/4 " | 101.7 | |||
| TTR30-5024 | 5 "x24" | 36-1/4 " | 60-1/4 " | 112.1 | |||
| TTR30-5030 | 5 "x30" | 42-1/4 " | 72-1/4 " | 12Z9 | |||
| TTR30-5036 | 5 "x36" | 48-1/4 " | 84-1/4 " | 143.6 | |||
| TTR30-5040 | 5 "x40" | 50-1/4 " | 90-1/4 " | 154.1 | |||
| TTR30-5048 | 5 "x48" | 60-1/4 " | 108-1/4 " | 175.1 | |||
Perincian silinder hidraulik siri TR-siri standard
