Siri ACL Standard Silinder Hidraulik
Siri Toleng Standard ACL dikimpal silinder hidraulik memegang kepentingan penting dalam perniagaan kami. Sistem pembuatan dan kualiti kami dirancang untuk menawarkan setiap pelanggan produk terbaik yang sesuai dengan keperluan mereka. Pasukan kejuruteraan dalaman di Toleng menjamin bahawa ciri-ciri dan bahan yang dipilih untuk setiap silinder hidraulik siri ACL yang dikimpal standard mewakili reka bentuk optimum untuk permohonan anda.
Hantar Pertanyaan
Penerangan Produk
Toleng Standard ACL Series dikimpal silinder hidraulik direka untuk aplikasi tugas berat, digunakan secara meluas dalam mana -mana industri. Setiap silinder menjalani ujian yang ketat yang melebihi piawaian industri dan memastikan kebolehpercayaan dan prestasi maksimum. Silinder hidraulik yang dikimpal kami menawarkan pelbagai spesifikasi untuk memenuhi tuntutan pelanggan tertentu.
Aplikasi Silinder Hidraulik Siri ACL Standard
Siri Toleng Standard ACL dikimpal silinder hidraulik dirancang untuk aplikasi tugas berat dan digunakan secara meluas dalam mana-mana industri. Ia menawarkan prestasi yang boleh dipercayai dan operasi yang cekap untuk produktiviti yang optimum.
Standard ACL Series dikimpal Spesifikasi Silinder Hidraulik
1. Konstruksi: Pembinaan dikimpal tugas berat
2. Tekanan kerja: 3000 psi
3. Endrod: besi mulur, berulir wanita Clevis, boleh laras dengan bolt mengunci
4.Piston: besi mulur, untuk peningkatan ketahanan
5.Tube: keluli, diasah dan ketepatan selesai
6.gland: berulir
7.Pin: keluli, bersalut zink
8.Seals: Hallite, Aston, NOK, DZ, dan lain -lain berkualiti tinggi. Boleh disesuaikan.
9.Paint: Hitam, Hijau, Merah, Kuning, dan lain -lain. Warna tersuai boleh didapati.
2. Tekanan kerja: 3000 psi
3. Endrod: besi mulur, berulir wanita Clevis, boleh laras dengan bolt mengunci
4.Piston: besi mulur, untuk peningkatan ketahanan
5.Tube: keluli, diasah dan ketepatan selesai
6.gland: berulir
7.Pin: keluli, bersalut zink
8.Seals: Hallite, Aston, NOK, DZ, dan lain -lain berkualiti tinggi. Boleh disesuaikan.
9.Paint: Hitam, Hijau, Merah, Kuning, dan lain -lain. Warna tersuai boleh didapati.
Parameter teknikal silinder hidraulik yang dikimpal standard
| Bahagian Nombor |
Orang dalam Diameter |
Orang luar Diameter |
*A | B | C | D | *E | F | G | H | I | J | K | L | Batang Benang |
Batang Diameter |
Pelabuhan |
| TACL15- | 1.50 " | 2.00 " | 10.25 " | 1.50 " | 0.76 " | 1.62 " | 4.50 " | 1.87 " | 0.87 " | 1.75 " | 2.00 " | 1.62 " | 0.93 " | 1.87 " | 0.875-14UNF | 1.00 " | SAE#6 |
| TACL20- | 2.00 " | 2.50 " | 10.25 " | 2.00 " | .01 " | 2.12 " | 3.62 " | 2.25 " | 1.12 " | 2.12 " | 2.62 " | 2.12 " | 0.81 " | 2.06 " | 1.125-12UNF | 1.12 " | SAE#8 |
| TACL25- | 2.50 " | 3.00 " | 10.25 " | 2.00 " | .01 " | 2.12 " | 3.62 " | 2.25 " | 1.12 " | 2.12 " | 2.62 " | 2.12 " | 0.81 " | 2.06 " | 1.125-12UNF | 1.25 " | SAE#8 |
| Acad3- | 3.00 " | 3.50 " | 10.25 " | 2.00 " | .01 " | 1.87 " | 3.62 " | 2.25 " | 1.12 " | 2.62 " | 2.62 " | 2.12 " | 0.87 " | 2.18 " | 1.250-12UNF | 1.50 " | SAE#8 |
| TACL35- | 3.50 " | 4.00 " | 10.25 " | 2.00 " | .01 " | 1.87 " | 3.62 " | 2.50 " | 1.12 " | 2.62 " | 2.75 " | 2.12 " | 0.93 " | 2.18 " | 1.500-12UNF | 1.75 " | SAE#8 |
| Tacl40- | 4.00 " | 4.50 " | 12.25 " | 2.25 " | .01 " | 1.75 " | 3.62 " | 2.50 " | 1.12 " | 2.62 " | 2.75 " | 2.12 " | 1.00 " | 2.18 " | 1.500-12UNF | 2.00 " | SAE#8 |
| *Untuk 8.00 "strok:*A = 12.25" | |||||||||||||||||
| *Untuk 8.00 "strok:*e = 6.50" (1.50 "bore) e = 5.62" (2.00 "hingga 4.00" melahirkan) | |||||||||||||||||
| Julat suhu meterai: -30 ℃/+100 ℃ (-22F/+212F) | |||||||||||||||||
| Kelajuan maksimum meterai: 3 kaki/saat | |||||||||||||||||
| Tekanan kerja maksimum yang ditarik = 3000 psi | |||||||||||||||||
| Dimensi *a dan *e adalah untuk rujukan hanya kerana Clevis boleh laras | |||||||||||||||||
| Silinder clevis wanita laras | |||||||
| Nombor bahagian | Batang Diameter |
Bore & Stroke | Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| Merentasi304 | 1 " | 1.5 "x4" | 14-1/4 " | 18-1/4 " | SAE#6 | 3/4 " | 10 |
| Merentasi3066 | 1.5 "x6" | 16-1/4 " | 22-1/4 " | 11 | |||
| Pertanian3008 | 1.5 "x8" | 18-1/4 " | 26-1/4 " | 12 | |||
| TACL30-1508-ASA | 1.5 "x8" | 20-1/4 " | 28-1/4 " | 13 | |||
| Pertanian3010 | 1.5 "x10" | 20-1/4 " | 30-1/4 " | 13 | |||
| Pertanian3012 | 1.5 "x12" | 22-1/4 " | 34-1/4 " | 15 | |||
| Pertanian3014 | 1.5 "x14" | 24-1/4 " | 38-1/4 " | 16 | |||
| Pertanian3016 | 1.5 "x16" | 26-1/4 " | 42-1/4 " | 17 | |||
| Pertanian3018 | 1.5 "x18" | 28-1/4 " | 46-1/4 " | 18 | |||
| Pertanian3020 | 1.5 "x20" | 30-1/4 " | 50-1/4 " | 20 | |||
| Pertanian3024 | 1.5 "x24" | 34-1/4 " | 58-1/4 " | 22 | |||
| Pertanian3028 | 1.5 "x28" | 38-1/4 " | 66-1/4 " | 25 | |||
| Pertanian3030 | 15 "x30" | 40-1/4 " | 70-1/4 " | 26 | |||
| Pertanian3032 | 1.5 "x32" | 42-1/4 " | 74-1/4 " | 27 | |||
| Pertanian3034 | 1.5 "x34" | 44-1/4 " | 78-1/4 " | 28 | |||
| Pertanian3036 | 1.5 "x36" | 46-1/4 " | 82-1/4 " | 29 | |||
| Accil30-2004 | 1-1/8 " | 2 "x4" | 14-1/4 " | 18-1/4 " | SAE#8 | 1 " | 16 |
| Accil30 OR006 | 2 "x6" | 16-1/4 " | 22-1/4 " | 17 | |||
| Pertanian30388 | 2 "x8" | 18-1/4 " | 26-1/4 " | 19 | |||
| TACL30-2008-ASA | 2 "x8" | 20-1/4 " | 28-1/4 " | 20 | |||
| T4CL30-2010 | 2 "x10" | 20-1/4 " | 30-1/4 " | 20 | |||
| TAC430-2012 | 2 "x12" | 22-1/4 " | 34-1/4 " | 22 | |||
| TACL3Q-2014 | 2 "x14" | 24-1/4 " | 38-1/4 " | 24 | |||
| Acad3-2016 | 2 "x16" | 26-1/4 " | 42-1/4 " | 25 | |||
| Acad3-2018 | 2 "x18" | 28-1/4 " | 46-1/4 " | 27 | |||
| Acrum3-3020 | 2 "x20" | 30-1/4 " | 50-1/4 " | 28 | |||
| Acad30-2024 | 2 "x24" | 34-1/4 " | 58-1/4 " | 31 | |||
| Acad30-2028 | 2 "x28" | 38-1/4 " | 66-1/4 " | 35 | |||
| Acad3-0030 | 2 "x30" | 40-1/4 " | 70-1/4 " | 36 | |||
| Acad3-2032 | 2 "x32" | 42-1/4 " | 74-1/4 " | 38 | |||
| Acad3-2034 | 2 "x34" | 44-1/4 " | 78-1/4 " | 39 | |||
| Acad3-2036 | 2 "x36" | 46-1/4 " | 82-1/4 " | 41 | |||
| Silinder clevis wanita laras | |||||||
| Nombor bahagian | Batang Diameter |
Melahirkan & Strok |
Dimensi | Saiz pelabuhan | Pin Saiz |
Berat (Lbs) |
|
| Ditarik balik | Dilanjutkan | ||||||
| Pertanian303504 | 1-1/4 " | 2.5 "x4" | 14-1/4 " | 18-1/4 " | SAE#8 | 1 " | 19 |
| Pertanian303506 | 2.5 "x6" | 16-1/4 " | 22-1/4 " | 21 | |||
| Pertanian30-2508 | 2.5 "x8" | 18-1/4 " | 26-1/4 " | 23 | |||
| Tacl30-2508asae | 2.5 "x8" | 20-1/4 " | 28-1/4 " | 23 | |||
| Pertanian3010 | 2.5 "x10" | 20-1/4 " | 30-1/4 " | 24 | |||
| Pertanian3012 | 2.5 "x12" | 22-1/4 " | 34-1/4 " | 26 | |||
| Pertanian3014 | 2.5 "x14" | 24-1/4 " | 38-1/4 " | 28 | |||
| Accil30-2516 | 2.5 "x16" | 26-1/4 " | 42-1/4 " | 30 | |||
| Accil30-2518 | 2.5 "x18" | 28-1/4 " | 46-1/4 " | 32 | |||
| Pertanian3020 | 2.5 "x20" | 30-1/4 " | 50-1/4 " | 34 | |||
| Pertanian3024 | 2.5 "x24" | 34-1/4 " | 58-1/4 " | 38 | |||
| Pertanian3028 | 2.5 "x28" | 38-1/4 " | 66-1/4 " | 42 | |||
| Pertanian3030 | 2.5 "x30" | 40-1/4 " | 70-1/4 " | 44 | |||
| Accrecy3032 | 2.5 "x32" | 42-1/4 " | 74-1/4 " | 46 | |||
| Accil30-2534 | 2.5 "x34" | 44-1/4 " | 78-1/4 " | 48 | |||
| Accil30-2536 | 2.5 "x36" | 46-1/4 " | 82-1/4 " | 49 | |||
| Pertanian3-3004 | 1-1/2 " | 3 "x4" | 14-1/4 " | 18-1/4 " | SAE#8 | 1 " | 24 |
| Pertanian3-3006 | 3 "x6" | 16-1/4 " | 22-1/4 " | 26 | |||
| Pertanian3-3008 | 3 "x8" | 18-1/4 " | 26-1/4 " | 29 | |||
| TACL30-3008-ASA | 3 "x8" | 20-1/4 " | 28-1/4 " | 29 | |||
| Acad3-3010 | 3 "x10" | 20-1/4 " | 30-1/4 " | 31 | |||
| Acad3-3012 | 3 "x12" | 22-1/4 " | 34-1/4 " | 34 | |||
| Acad3-3014 | 3 "x14" | 24-1/4 " | 38-1/4 " | 36 | |||
| Acad3-3016 | 3 "x16" | 26-1/4 " | 42-1/4 " | 39 | |||
| Acad3-3018 | 3 "x18" | 28-1/4 " | 46-1/4 " | 41 | |||
| Acrum3-3020 | 3 "x20" | 30-1/4 " | 50-1/4 " | 43 | |||
| Acad3-3024 | 3 "x24" | 34-1/4 " | 58-1/4 " | 48 | |||
| Acad3-3028 | 3 "x28" | 38-1/4 " | 66-1/4 " | 53 | |||
| Acad3-3030 | 3 "x30" | 40-1/4 " | 70-1/4 " | 56 | |||
| Acad3-3032 | 3 "x32" | 42-1/4 " | 74-1/4 " | 58 | |||
| Acad3-3034 | 3 "x34" | 44-1/4 " | 78-1/4 " | 61 | |||
| Acad3-3036 | 3 "x36" | 46-1/4 " | 82-1/4 " | 63 | |||
| Silinder clevis wanita laras | |||||||
| Nombor bahagian | Batang Diameter |
Bore & Stroke | Dimen sions | Saiz pelabuhan | Pin Saiz |
Berat (lbs) | |
| Ditarik balik | Dilanjutkan | ||||||
| Pertanian3-3504 | 1-3/4 " | 3.5 "x4" | 14-1/4 " | 18-1/4 " | SAE#8 | 1 " | 29 |
| Pertanian3-3506 | 3.5 "x6" | 16-1/4 " | 22-1/4 " | 32 | |||
| Pertanian3-3508 | 3.5 "x8" | 18-1/4 " | 26-1/4 " | 35 | |||
| TACL30-3508-ASA | 3.5 "x8" | 20-1/4 " | 28-1/4 " | 36 | |||
| Pertanian3-3510 | 3.5 "x10" | 20-1/4 " | 30-1/4 " | 38 | |||
| Pertanian3-3512 | 3.5 "x12" | 22-1/4 " | 34-1/4 " | 41 | |||
| Pertanian3-3514 | 3.5 "x14" | 24-1/4 " | 38-1/4 " | 44 | |||
| Pertanian3-3516 | 3.5 "x16" | 26-1/4 " | 42-1/4 " | 47 | |||
| Pertanian3-3518 | 3.5 "x18" | 28-1/4 " | 46-1/4 " | 50 | |||
| Pertanian3-3520 | 3.5 "x20" | 30-1/4 " | 50-1/4 " | 53 | |||
| Pertanian3-35524 | 3.5 "x24" | 34-1/4 " | 58-1/4 " | 59 | |||
| Pertanian3-3528 | 3.5 "x28" | 38-1/4 " | 66-1/4 " | 65 | |||
| Pertanian3-3530 | 3.5 "x30" | 40-1/4 " | 70-1/4 " | 68 | |||
| Pertanian3-3532 | 3.5 "x32" | 42-1/4 " | 74-1/4 " | 71 | |||
| Pertanian3-3534 | 3.5 "x34" | 44-1/4 " | 78-1/4 " | 75 | |||
| Pertanian3-3536 | 3.5 "x36" | 46-1/4 " | 82-1/4 " | 78 | |||
| Acrum3-4004 | 2 " | 4 "x4" | 14-1/4 " | 18-1/4 " | SAE#8 | 1 " | 35 |
| Acrum3-4006 | 4 "x6" | 16-1/4 " | 22-1/4 " | 38 | |||
| Acrum3-4008 | 4 "x8" | 18-1/4 " | 26-1/4 " | 42 | |||
| TACL30-4008-ASA | 4 "x8" | 20-1/4 " | 28-1/4 " | 43 | |||
| Accil3-4010 | 4 "x10" | 20-1/4 " | 30-1/4 " | 46 | |||
| Acad3-4012 | 4 "x12" | 22-1/4 " | 34-1/4 " | 49 | |||
| Acad3-4014 | 4 "x14" | 24-1/4 " | 38-1/4 " | 53 | |||
| Accil3-4016 | 4 "x16" | 26-1/4 " | 42-1/4 " | 57 | |||
| Acad3-4018 | 4 "x18" | 28-1/4 " | 46-1/4 " | 60 | |||
| Acad3-420 | 4 "x20" | 30-1/4 " | 50-1/4 " | 64 | |||
| Accil3-4024 | 4 "x24" | 34-1/4 " | 58-1/4 " | 71 | |||
| Pertanian3-4028 | 4 "x28" | 38-1/4 " | 66-1/4 " | 79 | |||
| Acad3-4030 | 4 "x30" | 40-1/4 " | 70-1/4 " | 83 | |||
| Acad3-4032 | 4 "x32" | 42-1/4 " | 74-1/4 " | 86 | |||
| Pertanian3-4034 | 4 "x34" | 44-1/4 " | 78-1/4 " | 90 | |||
| Acad3-4036 | 4 "x36" | 46-1/4 " | 82-1/4 " | 94 | |||

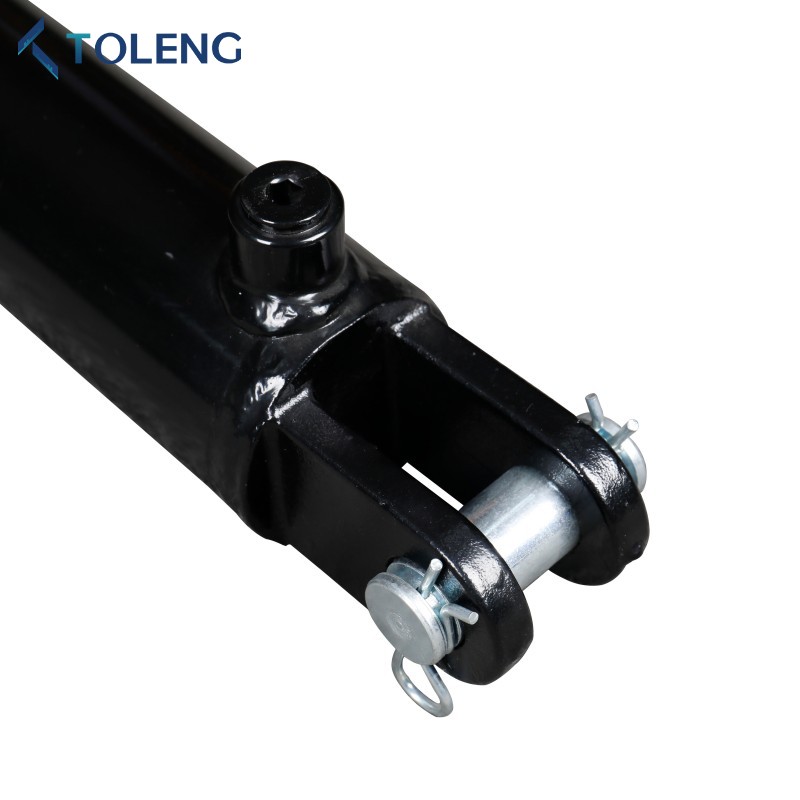

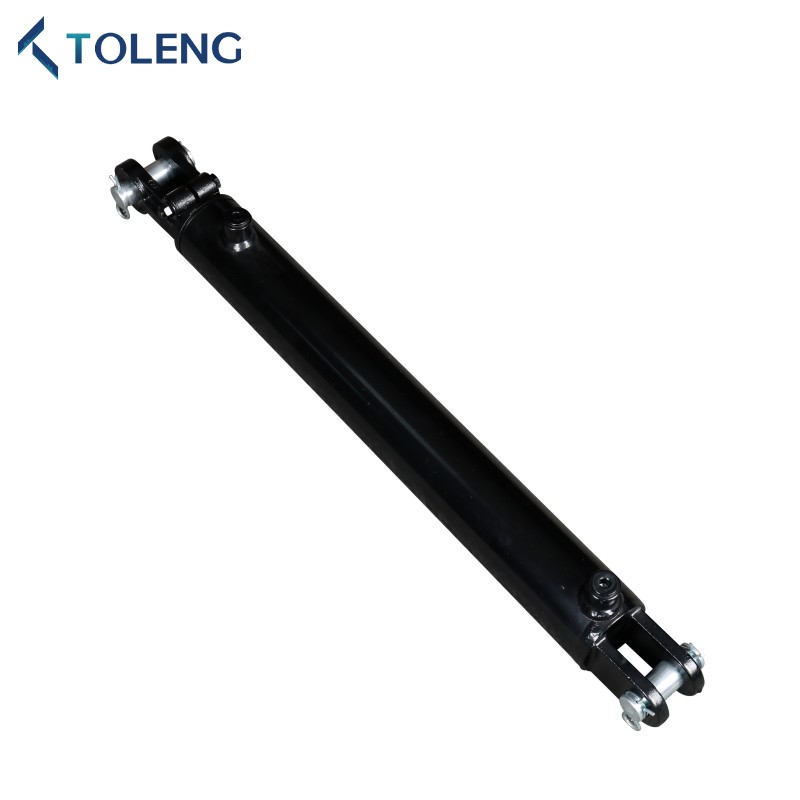

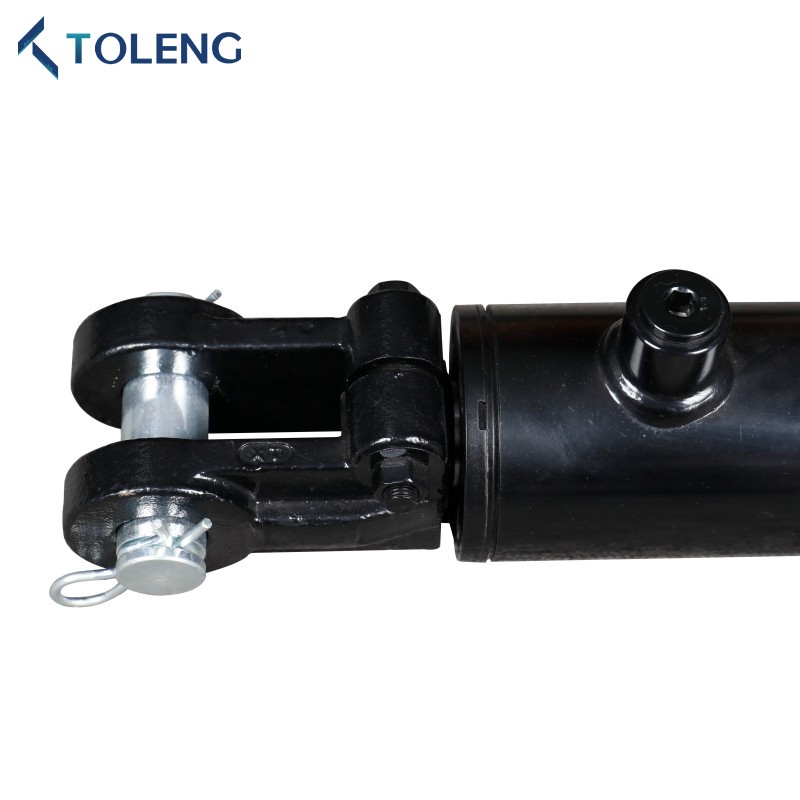

Perincian silinder hidraulik yang dikimpal standard
